Start with the Right Foundation
Where there is concrete, there is moisture that can cause dangerous mold and poor air quality when it comes in direct contact with your flooring. DryBarrier® subfloor system is mold and mildew resistant and provides a moisture barrier to protect and add warmth to finished basement floors on concrete slabs. Convenient and simple to install, DryBarrier® makes it easy to transform a cool, damp area into a warm, dry living space for your family.
The DryBarrier® Difference
- Mold and mildew resistant
- Tile flexibility
- No organic material
- Complete vapour barrier
- Durable to 11,500 lbs per sq. ft.
- Low profile and lightweight
- Easy to install and re-install
Why DryBarrier®?
Mold and Mildew Resistant
- Tiles are an innovative thermoplastic elastomer material tested and proven to resist mold and mildew growth.
- Does not contain organic materials like OSB that degrade over time when exposed to moisture.
Lightweight and Flexible
- Convenient and easy to transport.
- Tiles can be easily cut inside with no messy debris or hazardous air.
- Engineered with flexibility to accommodate concrete irregularities eliminating the need for shims.
- Stands up to heavy home furnishings up to 11,500 lbs per sq. ft.
Durable Flat Top Surface
- Durable at surface provides proper support for finished flooring.
- Solid profile will not collect water unlike dimpled rolled underlayments, in the event of a leak or spill.
Air-flow Technology
- Tiles create a thermal break adding up to 3⁰C of warmth to the finished floor.
- 1/4” Raised channels under the tile allow concrete to breathe and evaporation of moisture.
Water-flow Channels
- In the event of basement flooding, raised channels allow water to flow under tiles to a floor drain.
- Other systems can trap water causing foul odours, mold and mildew.
Low Profile
- 3/8” Tile profile helps maximize ceiling height in basement living spaces and minimizes floor height transitions.
DryBarrier® is a modular subfloor system designed for basements, placed directly on concrete below your finished floor. The 2’x2’ tiles simply snap together in a stacked bond pattern (no need for staggering) providing a vapour barrier and durable flat-top surface to support your choice of flooring. The low-profile tile is only 3/8” in thickness, optimizing ceiling height while providing an effective ¼” air gap to promote airflow and provide a thermal break for warmth and comfort. In the event of a water leak or spill, DryBarrier® will not trap water unlike dimpled surface underlayment’s, protecting your floors for a lifetime.
Start with the right foundation: DryBarrier®.
Product Specifications
| Overall Tile Length: | 24.0 inches |
| Overall Tile Width: | 24.0 inches |
| Tile Coverage Length: | 23.1 inches |
| Tile Coverage Width: | 23.1 inches |
| Tile Height/Thickness: | 0.375 inches |
| Tile Coverage: | 3.71 square feet |
| Tile Weight: | 2.50 lbs |
| Colour: | Black |
| Country of Origin: | Canada |
| Material Type: | Thermoplastic Elastomer |
Packaging Specifications
| Standard Pack Quantity: | 8 Tiles |
| Standard Pack Size: | 24"L x 24"W x 3"H |
| Standard Pack Weight: | 20 lbs |
| Standard Pack Coverage: | 30 square feet |
| Standard Pallet Quantity: | 416 Tiles (52 Packs) |
| Standard Pallet Size: | 48"L x 48"W x 45"H |
| Standard Pallet Weight: | 1,065 lbs |
| Standard Pallet Coverage: | 1,560 square feet |

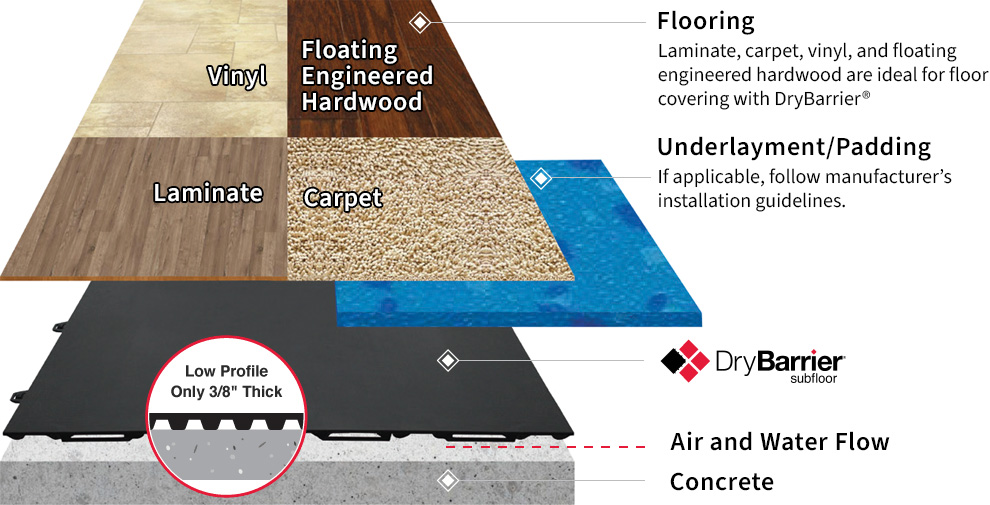

Technology
*Laminate, carpet, vinyl, and floating engineered hardwood are ideal for floor coverings with DryBarrier®.
† If applicable, follow manufacturer’s installation guidelines.
Description
DryBarrier® is a low profile modular subfloor tile system made from thermoplastic elastomer and is used on concrete as a subfloor for below grade and slab on-grade construction. The tiles easily snap together with no shims required, in a stack bond pattern minimizing cuts. DryBarrier® adds warmth and creates a vapor barrier with a 1/4” air space between the concrete and finished floor. The durable top surface is flat and can support finished floor applications such as laminates, carpet, engineered vinyl planks and engineered floating hardwood.
Specifications
Product Specifications
| Overall Tile Length: | 24.00 Inches |
| Overall Tile Width: | 24.00 Inches |
| Tile Coverage Length: | 23.00 Inches |
| Tile Coverage Width: | 23.00 Inches |
| Tile Height/ Thickness: | 0.375 Inches (3/8") |
| Tile Coverage: | 3.70 square feet |
| Tile Weight: | 2.50 lbs |
| Colour: | Black |
| Surface Finish: | Sandblast |
| Country of Origin: | Canada |
| Material Type: | Thermoplastic Elastomer |
Packaging Specifications
| Standard Pack Quantity: | 8 Tiles |
| Standard Pack Size: | 24"L x 24"W x 3"H |
| Standard Pack Weight: | 20 lbs |
| Standard Pack Coverage: | 30 square feet |
| Standard Pallet Quantity: | 416 Tiles (52 Packs) |
| Standard Pallet Size: | 48"L x 48"W x 45"H |
| Standard Pallet Weight: | 1,125 lbs |
| Standard Pallet Coverage: | 1,560 square feet |
